Ideal Tridon® is a global leader in clamping solutions and Goodyear Rubber Products is proud to serve as a master distributor.
With a comprehensive in-stock range of worm gear clamps and more, we supply the components OEMs and maintenance pros trust for high-performance sealing and fastening. Whether you’re building or maintaining fluid systems, Ideal Tridon clamps deliver long-term, corrosion-resistance performance.
- More Flexible:
Easier to move in and out of tight spaces and around corners - Lighter weight:
Easier to lift and carry, resulting in fewer workplace injuries - Lower Force to Bend:
Easier to connect and disconnect for increased productivity - Improved Flex Performance:
More durable and longer lasting
Engineered for strength. Trusted by OEMs. Stocked by Goodyear Rubber Products.
Clamp Family Overview
Compare popular Ideal Tridon clamp family series and product categories by type and use case.
WHICH CLAMP BEST FITS YOUR NEEDS?
Goodyear Rubber Products stocks a wide range of Ideal Tridon® clamps trusted by OEMs, MRO technicians, and installers across industries. These clamps are engineered for strength, consistency, and long-term durability, even in the harshest conditions.
| Find Your Material | Corrosion resistance increases → | |||||
|---|---|---|---|---|---|---|
| Plated Carbon Steel | 400 Stainless | 200 Stainless | 300 Stainless | 316 Stainless | ||
| Markets | Automobile | ● | ● | ● | ● | |
| Farm | ● | ● | ● | ● | ||
| Food | ● | ● | ||||
| Garden | ● | ● | ● | |||
| Heavy Duty | ● | ● | ● | |||
| Home | ● | ● | ● | ● | ● | |
| Industrial / MRO | ● | ● | ● | ● | ||
| Marine | ● | ● | ||||
| Medical | ● | |||||
| Plumbing / Watersystems | ● | ● | ● | ● | ||
| Turbo / Forced Air | ● | ● | ● | |||
| Characteristics | Highest Corrosion Resistance | ● | ||||
| Best Corrosion Resistance | ● | |||||
| Better Corrosion Resistance | ● | |||||
| Good Corrosion Resistance | ● | |||||
| Properties* | Material is “Non-Magnetic”* | ● | ● | ● | ||
| Material is “Magnetic” | ● | ● | ||||
| Certifications | IAPMO Listed Product Applications | ● | ● | |||
Featured Clamp Families
- > Quick-release, constant tension, T-Bolt, and V-band clamps
- > Solutions for temperature-sensitive or high-pressure environments
- > Used in military, marine, automotive, and heavy-duty industrial applications

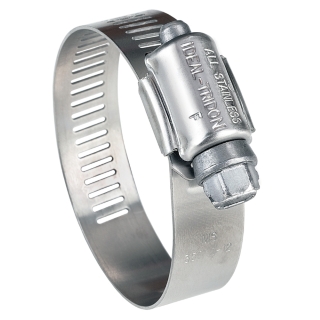

Military Worm Drive 632 Series
Application
Stocked in high volume across branches
Military Worm-Drive Clamps are manufactured to the military specification MS-35842 which is stamped directly on the band.
Military Worm Drive clamps are manufactured to military specification MS-35842 and AA-52506C
- > 410 Stainless 5/16″ Hex Head
- > 201 Housing and 1/2″ Band Width
- > Series: Ideal-Tridon 632, Tridon 632
- > Trusted by OEMs for quality control and consistency
*For full specifications, please see p.20 of the Ideal Tridon Product Catalog
| Size | Item # | Min Dia (in) | Max Dia (in) |
|---|---|---|---|
| 6 | 632-006 | 3/8″ | 7/8″ |
| 12 | 632-012 | 1/2″ | 1-1/4″ |
| 24 | 632-024 | 1″ | 2″ |
| 36 | 632-036 | 3/4″ | 2-3/4″ |
| 48 | 632-048 | 2-1/2″ | 3-1/2″ |
| 60 | 632-060 | 3-5/16″ | 4-1/4″ |
| 104 | 632-104 | 4″ | 7″ |

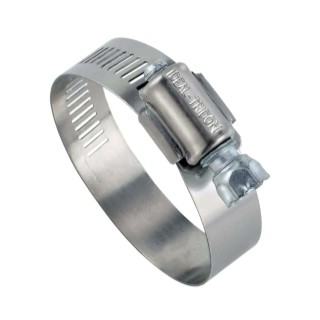

Combo-Hex 54-0 Series
Application
Combo-Hex clamps are the clamps professional mechanics choose most often. Particularly helpful in hard-to-reach areas, they feature an exclusive, safety-collared, deep-slotted screw design that prevents screwdrivers from slipping and puncturing the hose wall. Combo-Hex clamps can be installed with a screwdriver, nutdriver or socket wrench.
*For full specifications, please see p.20 of the Ideal Tridon Product Catalog
| Size | Item # | Min Dia (in) | Max Dia (in) |
|---|---|---|---|
| 6 | 632-006 | 3/8″ | 7/8″ |
| 12 | 632-012 | 1/2″ | 1-1/4″ |
| 24 | 632-024 | 1″ | 2″ |
| 36 | 632-036 | 3/4″ | 2-3/4″ |
| 48 | 632-048 | 2-1/2″ | 3-1/2″ |
| 60 | 632-060 | 3-5/16″ | 4-1/4″ |
| 104 | 632-104 | 4″ | 7″ |
Non-Perforated (Embossed) Series
Application
Non-Perforated (Embossed) clamps are based on our popular general purpose worm gear clamps, but are engineered to prevent hose damage during installation. The non-perforated band keeps soft silicone hoses from shearing or extruding during installation and final torquing, maintaining the integrity of the connection, and providing a more stable seal.
Ideal Tridon Non-Perforated clamps are available in several material configurations making them perfect for automotive, marine and many industrial applications. Better yet, they act and perform just like traditional worm gear clamps, fitting into restricted spaces and holding tightly over time.
Features
- Wide cross saddle provides a more even support structure
- Meets or exceeds DIN 3017 standard
- Easy identification and application fitment due to specifications and ranges stamped on band
- Smooth inside band protects soft hoses again shearing and fray, extending service life
*For full specifications, please see p.16 of the Ideal Tridon Product Catalog
| Size | Item # | Min Dia (in) | Max Dia (in) |
|---|---|---|---|
| 6 | 632-006 | 3/8″ | 7/8″ |
| 12 | 632-012 | 1/2″ | 1-1/4″ |
| 24 | 632-024 | 1″ | 2″ |
| 36 | 632-036 | 3/4″ | 2-3/4″ |
| 48 | 632-048 | 2-1/2″ | 3-1/2″ |
| 60 | 632-060 | 3-5/16″ | 4-1/4″ |
| 104 | 632-104 | 4″ | 7″ |

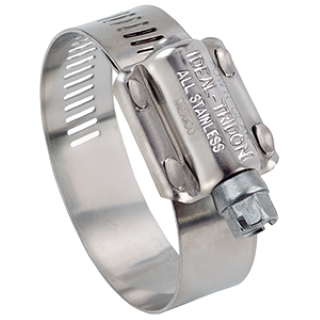

Pow’r-Gear® Series
Application
Pow’r-Gear® high performance clamps are designed for high vibration and stubborn leakage applications such as industrial machinery, heavy truck, farm and off-road equipment engines.
Features
- > Extra wide 5/8″ heavy gauge band and a wide profile housing for maximum engagement of screw threads to band.
- > Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs.
- > All clamps are available in marine grade 316 both with and without liner.
*For full specifications, please see p.28 of the Ideal Tridon Product Catalog
| Size | Item # | Min Dia (in) | Max Dia (in) |
|---|---|---|---|
| 6 | 632-006 | 3/8″ | 7/8″ |
| 12 | 632-012 | 1/2″ | 1-1/4″ |
| 24 | 632-024 | 1″ | 2″ |
| 36 | 632-036 | 3/4″ | 2-3/4″ |
| 48 | 632-048 | 2-1/2″ | 3-1/2″ |
| 60 | 632-060 | 3-5/16″ | 4-1/4″ |
| 104 | 632-104 | 4″ | 7″ |

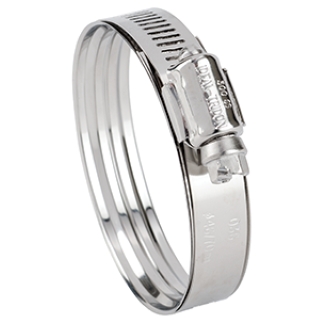

SmartSeal® Series
Application
Weighing less than traditional self-compensating clamps, SmartSeal is now being used on the newest fuel-efficient vehicles coming to market.
Benefits
- Patented technology for constant tension worm gear clamps
- Continuous seal in a steady 360 degree pattern
- Automatically adjusts with thermal expansion/contraction
- Ideal for automotive, engine, or temperature-varying systems
- Eliminates leaks due to temperature shifts. Preferred in precision-built applications.
Specifications
- Package Quantity: 2
- Band Material: 300 SS
- Housing Material: 300 SS
- Screw Material: 300 SS
- Band Width: 1/2″
*For full specifications, please see p.8 of the Ideal Tridon Product Catalog
| Description | SAE Size | Range (in.) | Part Number |
|---|---|---|---|
| SmartSeal® 37215 Series | 16 | 1-3/32 – 1-9/32 | 37215-0016-058 |
| SmartSeal® 37215 Series | 20 | 1-1/8 – 1-9/16 | 37215-0020-058 |
| SmartSeal® 37215 Series | 24 | 1-1/2 – 1-13/16 | 37215-0024-058 |
| SmartSeal® 37215 Series | 28 | 1-3/4 – 2-1/16 | 37215-0028-058 |
| SmartSeal® 37215 Series | 36 | 2-1/8 – 2-9/16 | 37215-0036-058 |
| SmartSeal® 37215 Series | 40 | 2-5/16 – 2-13/16 | 37215-0040-058 |

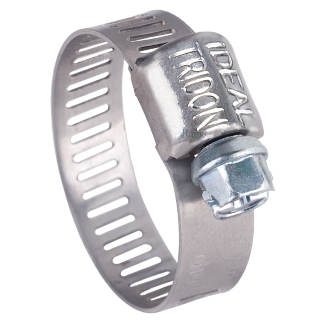

Micro-Gear® Series
Application
Micro-Gear® clamps are tiny, tough and precision-engineered to use in small hose applications including emission control, fuel lines and vacuum hoses. Slim, 5/16″ bands and low profile housings allow installation in confined areas.
*For full specifications, please see p.10 of the Ideal Tridon Product Catalog
| Type | Size | Item # | Range (in.) |
|---|---|---|---|
| Micro-Gear® 359 Series | |||
| 359 Series | 4 | 359-004 | 5/16 – 5/8 |
| 359 Series | 6 | 359-006 | 5/16 – 7/8 |
| 359 Series | 8 | 359-008 | 7/16 – 1 |
| 359 Series | 10 | 359-010 | 1/2 – 1-1/6 |
| Micro-Gear® 62M / Tridon 345 Series | |||
| 62M / 345 | 4 | 62604 (1) | 5/16 – 5/8 |
| 62M / 345 | 5 | 62M05 | 5/16 – 3/4 |
| 62M / 345 | 6 | 62606 (2) | 5/16 – 7/8 |
| 62M / 345 | 8 | 62M08 | 7/16 – 1 |
| 62M / 345 | 10 | 62M10 | 1/2 – 1-1/16 |
| 62M / 345 | 12 | 62M12 | 9/16 – 1-1/4 |
| 62M / 345 | 16 | 62M16 | 11/16 – 1-1/2 |
| 62M / 345 | 20 | 62M20 | 3/4 – 1-3/4 |
| 62M / 345 | 24 | 62M24 | 1 – 2 |
| 62M / 345 | 28 | 62M28 | 1-1/4 – 2-1/4 |
| 62M / 345 | 30 | 62M30 | 1-3/8 – 2-3/8 |
| 62M / 345 | 32 | 62M32 | 1-1/2 – 2-1/2 |
| 62M / 345 | 36 | 62M36 | 1-3/4 – 2-3/4 |
| 62M / 345 | 44 | 62M44 | 2-1/4 – 3-1/4 |
| 62M / 345 | 48 | 62M48 | 2-1/2 – 3-1/2 |
| Micro-Gear® 62P / Tridon 325 Series | |||
| 62P / 325 | 4 | 6204 (3) | 5/16 – 5/8 |
| 62P / 325 | 5 | 62P05 | 5/16 – 3/4 |
| 62P / 325 | 6 | 6206 (4) | 5/16 – 7/8 |
| 62P / 325 | 8 | 62P08 | 7/16 – 1 |
| 62P / 325 | 10 | 62P10 | 1/2 – 1-1/16 |
| 62P / 325 | 12 | 62P12 | 9/16 – 1-1/4 |
| 62P / 325 | 16 | 62P16 | 11/16 – 1-1/2 |
| 62P / 325 | 20 | 62P20 | 3/4 – 1-3/4 |
| 62P / 325 | 24 | 62P24 | 1 – 2 |
| 62P / 325 | 28 | 62P28 | 1-1/4 – 2-1/4 |
| 62P / 325 | 30 | 62P30 | 1-3/8 – 2-3/8 |
| 62P / 325 | 32 | 62P32 | 1-1/2 – 2-1/2 |
| 62P / 325 | 36 | 62P36 | 1-3/4 – 2-3/4 |
| 62P / 325 | 44 | 62P44 | 2-1/4 – 3-1/4 |
| 62P / 325 | 48 | 62P48 | 2-1/2 – 3-1/2 |
| Micro-Gear® 52M Series | |||
| 52M Series | 4 | 5202 | 5/16 – 5/8 |
| 52M Series | 5 | 5205 | 5/16 – 3/4 |
| 52M Series | 6 | 5203 | 5/16 – 7/8 |
Need a Clamp Solution? We’ve Got You Covered.
Goodyear Rubber Products keeps the Ideal Tridon® product line moving. Whether you’re restocking, upgrading, or working against a deadline, our team can match your specs and ship fast.
