Latinoamérica / EspañolDry Bulk Transfer Hoses
The Continental range of bulk transfer hoses, which covers a variety of mediums including oil, fuel, bulk material, liquid mud and methanol, is used in a wide range of applications including bunkering, dragchains, loading stations and many more.
It is also possible to heat trace bulk hoses for extreme cold conditions to maintain the integrity of the hose.
- More Flexible:
Easier to move in and out of tight spaces and around corners - Lighter weight:
Easier to lift and carry, resulting in fewer workplace injuries - Lower Force to Bend:
Easier to connect and disconnect for increased productivity - Improved Flex Performance:
More durable and longer lasting
Bulk Transfer
| Page | Food Grade | Static Dissipating/Static Conductive Tube | Temp. Range | Suction | Discharge Only | |
|---|---|---|---|---|---|---|
| Black Softwall | 153 | Yes | -25˚F to 180˚F (-32°C to 82°C) | Yes | ||
| Flextra Dry Material | 152 | Yes | -40˚F to 180˚F (-40°C to 205°C) | Yes | ||
| Plicord Torridair Hot Air Blower | 154 | -40˚F to 400˚F (-40°C to 205°C) | Yes | |||
| Pyroflex II Hot Air | 155 | -20˚F to 325˚F (-29°C to 163°C) | Yes | |||
| Pyroflex III Hot Air | 156 | Yes | -20˚F to 325˚F (-29°C to 163°C) | Yes | ||
| Spiraflex Mulch Blower | 157 | 0°F to 158°F (-18°C to 70°C) | Yes | |||
| Tan Flextra | 159 | Yes | -40˚F to 180˚F (-40°C to 82°C) | Yes | ||
| Tan Flexwing | 158 | Yes | -40˚F to 180˚F (-40°C to 82°C) | Yes | ||
| Tan Softwall | 160 | Yes | -40˚F to 180˚F (-40°C to 82°C) | Yes |
Flextra® Dry Material
Application
Flextra® Dry Material is a static dissipating/static conductive hose for tank truck and in-plant service. This hose is used to convey non-oily abrasive materials such as sand, limestone and plastic pellets. It is recommended where static buildup
can be a problem.
Construction
> Tube
3/16″ gauge black Chemituf® synthetic rubber (static dissipating/static conductive)
> Cover
Black SBR synthetic rubber (corrugated) with yellow spiral stripe (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with wire helix
Temperature Range
-40˚F to 180˚F (-40˚C to 82˚C)
Packaging
100′ lengths, coiled and poly-wrapped
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.
Order Codes
543-429
*For full specifications, please see p.152 of the Dry Bulk Catalog
Black Softwall
Application
For the discharge of dry bulk cement from tank truck and in-plant service.
Construction
> Tube
1/8″ (static dissipating/static conductive) Black Chemituf® synthetic rubber. Available in 1/8″, 3/16″ and 1/4″ tube gauges
> Cover
Black SBR synthetic rubber with white spiral stripe (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric
Temperature Range
-25˚F to 180˚F (-32˚C to 82˚C)
Packaging
100′ lengths, coiled and poly-wrapped
Branding (Spiral)
Example: Continental ContiTech Black Softwall
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Use ContiTech Insta-Lock™ cam & groove fittings with this product. See the Coupling Systems information pages at the back of this catalog.
Order Codes
549-152 (1/8″ tube gauge 50 psi)
549-149 (3/16″ tube gauge 75 psi)
549-148 (1/4″ tube gauge 50 psi)
| SAP# | Dia. | ID | OD | Weight | |
|---|---|---|---|---|---|
| (1/8″) | Survivor Compound | PO | mm | mm | #/ft. |
| 20019306 | 3 | 76.1 | 86.3 | 1.06 | |
| 20019309 | 20665783 | 4 | 102.1 | 112.3 | 1.38 |
| 20046192 | 4½ | 114.6 | 125.4 | 1.64 | |
| 20019315 | 20677559 | 5 | 127.4 | 138.2 | 1.82 |
| 20019319 | 6 | 152.7 | 163.9 | 2.25 |
| SAP# | Dia. | ID | OD | Weight | |
|---|---|---|---|---|---|
| (3/16″) | Survivor Compound | PO | mm | mm | #/ft. |
| 20019281 | 20673663 | 4 | 102.1 | 116.2 | 1.92 |
| 20029627 | 4½ | 114.6 | 129.0 | 2.21 | |
| 20109496 | 5 | 127.4 | 141.8 | 2.44 | |
| 20468267 | 5½ | 140.1 | 154.5 | 2.67 | |
| 20446687 | 6 | 152.7 | 167.7 | 3.01 |
| SAP# | Dia. | ID | OD | Weight | |
|---|---|---|---|---|---|
| (1/4″) | Survivor Compound | PO | mm | mm | #/ft. |
| 20019277 | 20639327 | 4 | 102.1 | 118.7 | 2.29 |
| 20311113 | 4½ | 114.6 | 131.8 | 2.65 | |
| 20019279 | 5 | 127.4 | 145.0 | 3.00 | |
| 20019280 | 6 | 152.7 | 170.3 | 3.56 |
Hose design ratio (burst pressure) 4:1.
Plicord® Torridair™ Hot Air Blower
Application
This hose is designed to transfer hot, non-oily air, up to 400˚F (204˚C), from manifold blowers or in-plant compressors to holding tanks used in the transfer of dry bulk materials.
Construction
> Tube
Black, STF (Super Thermo-Flo) EPDM synthetic rubber
> Cover
Black, weather-resistant, STF (Super Thermo-Flo) EPDM synthetic rubber (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with double wire helix
Temperature Range
-40°F to 400°F (-40°C to 204°C)
Packaging
100′ lengths, coiled and polywrapped
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Use ContiTech Insta-Lock™ cam & groove fittings with this product. See the Coupling Systems information pages at the back of the catalog.
Order Codes
549-856
*For full specifications, please see p.154 of the Dry Bulk Catalog
Pyroflex® II Hot Air
Application
Pyroflex® II Hot Air is for conveying hot air from compressors to tanks on bulk dry material carriers.
Construction
> Tube
Black heat-resistant EPDM synthetic rubber
> Cover
Heat-resistant black EPDM synthetic rubber with orange spiral stripe (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with wire helix
Temperature Range
-20°F to 325°F (-29°C to 163°C)
Packaging
100′ lengths, coiled and poly-wrapped
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Use ContiTech Insta-Lock™ cam & groove fittings with this product. See the Coupling Systems information pages at the back of the catalog.
Order Codes
549-394
*For full specifications, please see p.155 of the Dry Bulk Catalog
Pyroflex® III Hot Air
Application
Pyroflex® III Hot Air is for conveying hot air with FDAcompliant tubing that can be used in unloading edible materials.
Construction
> Tube
White EPDM – FDA compliant
> Cover
Red Standard EPDM
> Reinforcement
Spiral-plied synthetic fabric with wire helix
Temperature Range
-20˚F to 325˚F (-28.8˚C to 162.8˚C)
Packaging
100′ lengths, coiled and poly-wrapped
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Use ContiTech Insta-Lock™ cam & groove fittings with this product. Other fitting types contact fitting company.
Non-Stock/Sizes
100′ for stock and 400′ for MTO
Order Codes
549-952
*For full specifications, please see p.156 of the Dry Bulk Catalog
Spiraflex® Mulch Blower
Application
Spiraflex® Mulch Blower is a high-strength, mulch-blowing hose that’s flexible and durable. It provides visible, unrestricted
material applications in a buildup and hose balance. This hose can be used to spray mulch, woodchips and other materials for landscaping applications in a wide range of environments.
Construction
> Tube
Clear high molecular weight PVC
> Reinforcement
Yellow rigid PVC helic
Temperature Range
-0°F to 158°F (-18°C to 70°C)
Packaging
100′ coils covered with stretch film and cardboard
Branding
Not branded
Stock Sizes
4″ and 5″
Order Codes
586-553
*For full specifications, please see p.157 of the Dry Bulk Catalog
Tan Flexwing®
Application
Tan Flexwing® is for acids, alcohol bases and salt solutions.
Construction
> Tube
Tan Pureten™ gum rubber (non oil-resistant)
> Cover
Tan SBR synthetic rubber (non oil-resistant) with blue spiral stripe (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with wire helix
Temperature Range
-40˚F to 180˚F (-40˚C to 82˚C)
Packaging
100′ lengths, coiled and poly-wrapped
Branding (Spiral)
Example: Continental ContiTech Tan Flexwing® with Pureten™ 150 psi WP
Couplings
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Order Codes
546-068
*For full specifications, please see p.157 of the Dry Bulk Catalog

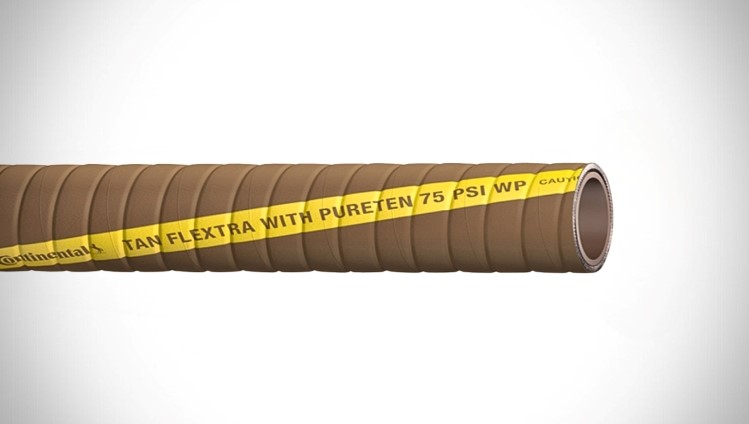

Tan Flextra® – Material Handling
Application
For tank truck and in-plant service. Used to convey non-oily abrasive materials such as sand, limestone and plastic pellets.
Construction
> Tube
Pureten™ gum rubber
> Cover
Tan SBR gum rubber (corrugated) with yellow spiral stripe (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with wire helix
Temperature Range
-40°F to 180°F (-40°C to 82°C)
Packaging
1½”-4″ – 100′ lengths, coiled and poly-wrapped
5″-6″ – 50′ lengths, coiled and poly-wrapped
Branding (Spiral)
Example: Continental ContiTech Tan Flextra® with Pureten™ 75 psi WP
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.
Order Codes
549-116
*For full specifications, please see p.158 of the Dry Bulk Catalog
Tan Softwall
Application
A fabric-reinforced hose for the discharge of non-oily abrasive materials such as sand, limestone, gravel and plastic pellets. For use where static electrical buildup is not a problem.
Construction
> Tube
Tan Pureten™ gum rubber
> Cover
Tan SBR synthetic rubber (wrapped impression)
> Reinforcement
Spiral-plied synthetic fabric with static helix
Temperature Range
-40˚F to 180˚F (-40˚C to 82˚C)
Packaging
2″-4″ – 100′ lengths, coiled and poly-wrapped
5″-6″ – 50′ lengths, coiled and poly-wrapped
Branding (Spiral)
Example: Continental ContiTech Tan Softwall with Pureten™ 75 psi WP
Couplings
Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.
Order Codes
546-040
*For full specifications, please see p.159 of the Dry Bulk Catalog
Catalogs
See below for the Continental Industrial Hose catalog, also available at this link.
