Welcome to the Kanaflex FlexFlo Hoses category, where innovation meets performance in fluid transfer solutions. We design our FlexFlo fluid handling hoses to provide exceptional flexibility, durability, and efficiency for a wide range of fluid handling applications.
- More Flexible:
Easier to move in and out of tight spaces and around corners - Lighter weight:
Easier to lift and carry, resulting in fewer workplace injuries - Lower Force to Bend:
Easier to connect and disconnect for increased productivity - Improved Flex Performance:
More durable and longer lasting
FlexFLO™ lite 100 (100 CL)
General water suction and discharge hose
An adaptable solution for diverse applications. Constructed with flexible PVC, it offers easy drag with an external helix, clear sidewall for visual inspection, and smooth bore for precise flow and drainability. Ideal for water pumping on construction sites, as well as general use in agricultural and marine industries.
Application
The general water and suction hose that can be used for water pumping on construction sites and also serves as a general used hose in both the agricultural and marine industries.
Ag General Use, Marine General Use, Waste Management General Use, Water Pumping, Water Suction
Features
> Easy Drag
> Full Vacuum (no lower than 29.8 Hg)
> High Flexibility (Based on Bend Radius)
Lightweight and flexible hose constructed with flexible PVC. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.
Construction
Flexible PVC, rigid PVC helix, smooth bore, corrugated O.D
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.25 | 3.17 | 100 | 30.48 |
| 1¼ | 3.17 | 1.52 | 3.86 | 100 | 30.48 |
| 1½ | 3.81 | 1.81 | 4.59 | 100 | 30.48 |
| 2 | 5.08 | 2.36 | 5.99 | 100 | 30.48 |
| 3 | 7.62 | 3.50 | 8.89 | 100 | 30.48 |
| 4 | 10.16 | 4.63 | 11.76 | 100 | 30.48 |
FlexFLO™ lite 100 CW (100 CWFLX)
Cold weather water suction and discharge hose
A versatile solution for demanding cold conditions. Constructed with cold weather PVC, it offers flexibility, easy drag with an external helix, and suitability for both suction and discharge. Ideal for water pumping on construction sites and widely applicable in agricultural and marine industries.
Application
Ag General Use, Marine General Use, Waste Management General Use, Water Pumping
Features
Lightweight and flexible hose constructed with cold weather PVC, making it perfect for the most demanding cold conditions. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow.
Construction
Cold weather PVC, rigid PVC helix, smooth bore, corrugated O.D.
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Accessories
Banding coil, Powerlock clamp
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.25 | 3.17 | 100 | 30.48 |
| 1½ | 3.81 | 1.81 | 4.59 | 100 | 30.48 |
| 2 | 5.08 | 2.36 | 5.99 | 100 | 30.48 |
| 3 | 7.62 | 3.50 | 8.89 | 100 | 30.48 |
| 4 | 10.16 | 4.55 | 11.55 | 100* | 30.48 |
| 5 | 12.7 | 5.73 | 14.55 | 50, 100* | 15.24, 30.48 |
| 6 | 15.24 | 6.73 | 17.09 | 50, 100* | 15.24, 30.48 |

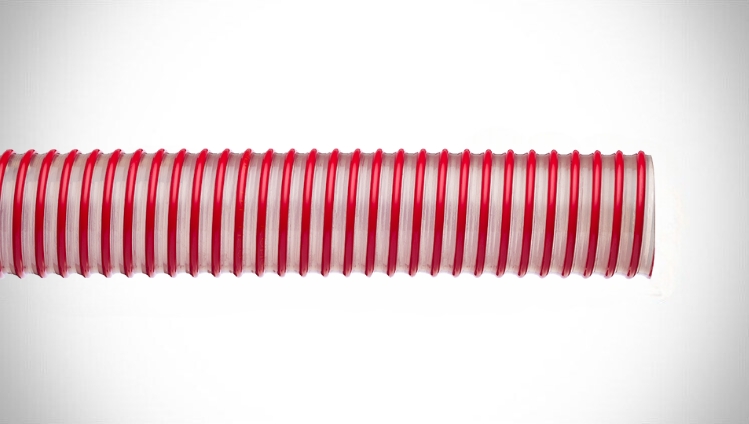

FlexFLO™ lite U 100 (100 UCLRD)
Medium-duty polyurethane dry material handling hose
Engineered for sub-zero flexibility. With a clear polyurethane-lined PVC tube, it ensures abrasion resistance, visual material flow check, and quiet operation. Ideal for dry material pneumatic conveying, plastic
pellet and powder transfer (non-static), and diverse agricultural applications.
Application
Dry material pneumatic conveying systems and plastic pellet and powder transfer when static is not a concern. Agricultural applications, such as air seeders, abrasive material vacuum systems, and industrial vac equipment.
Features
Lightweight and flexible in sub-zero temperatures. Clear polyurethane lined PVC tube provides abrasion resistance, permits visual check of material flow, prevents material build up, and provides quiet operation. Corrugated PVC O.D. with raised PVC helix for increased flexibility and easy drag.
Construction
Flexible polyurethane lined PVC tube, rigid PVC helix, smooth bore, PVC corrugated O.D.
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Accessories
Banding coil, Powerlock clamp
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.30 | 3.3 | 100* | 30.48 |
| 1¼ | 3.17 | 1.58 | 4 | 100* | 30.48 |
| 1½ | 3.81 | 1.81 | 4.59 | 100* | 30.48 |
| 2 | 5.08 | 2.36 | 5.99 | 100* | 30.48 |
| 2½ | 6.35 | 2.93 | 7.44 | 100 | 30.48 |
| 3 | 7.62 | 3.50 | 8.89 | 100 | 15.24, 30.48 |
| 4 | 10.16 | 4.63 | 11.76 | 50, 100** | 15.24, 30.48 |
| 5 | 12.7 | 5.73 | 14.55 | 50, 100** | 15.24, 30.48 |
| 6 | 15.24 | 6.85 | 17.39 | 50, 100** | 15.24, 30.48 |
** 5,000 ft order minimum

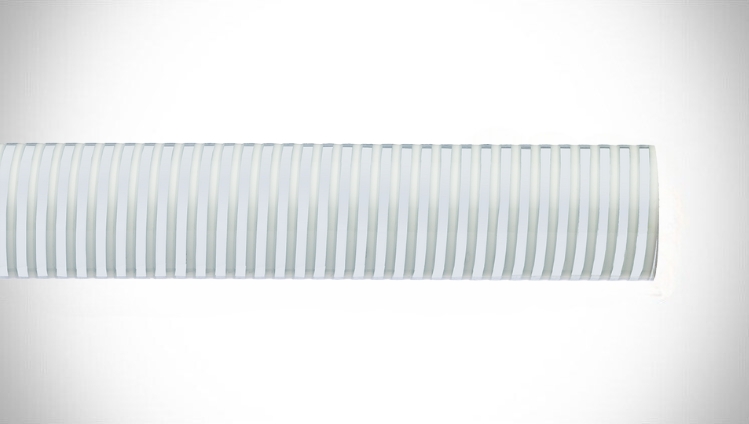

FlexFLO™ 110 (110 CL/110 GR)
Heavy-duty water suction and discharge hose
A versatile solution for agricultural, marine, and fish suction applications. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow in temperatures from -13°F to 140°F.
Application
Heavy-duty water and suction hose with multiple agricultural applications including, air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Also useful in fish suction applications.
Construction
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D.
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| ¾ | 1.9 | 0.95 | 2.4 | 100 | 30.48 |
| 1 | 2.54 | 1.25 | 3.17 | 100 | 30.48 |
| 1¼ | 3.17 | 1.52 | 3.86 | 100 | 30.48 |
| 1½ | 3.81 | 1.81 | 4.59 | 100 | 30.48 |
| 2 | 5.08 | 2.38 | 6.04 | 100 | 30.48 |
| 2½ | 6.35 | 2.92 | 7.4 | 100 | 30.48 |
| 3 | 7.62 | 3.41 | 8.66 | 100 | 30.48 |
| 4 | 10.16 | 4.50 | 11.43 | 100 | 30.48 |
| 5 | 12.7 | 5.55 | 14.09 | 50, 100 | 15.24, 30.48 |
| 6 | 15.24 | 6.67 | 16.9 | 50, 100 | 15.24, 30.48 |
| 8 | 20.32 | 8.83 | 22.4 | 20, 25 | 6.09, 7.62 |
FlexFLO™ 112 (112 CL/112 AG)
Economical heavy-duty water suction and discharge hose
An ideal solution for various agricultural applications such as air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow and optimal drainability.
Application
Economical water and suction hose with multiple agricultural applications including, air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Also useful in fish suction applications.
Construction
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1¼ | 3.17 | 1.47 | 3.7 | 100 | 30.48 |
| 1½ | 3.81 | 1.77 | 4.49 | 100 | 30.48 |
| 2 | 5.08 | 2.30 | 5.84 | 100 | 30.48 |
| 2½ | 6.35 | 2.84 | 7.2 | 100 | 30.48 |
| 3 | 7.62 | 3.35 | 8.5 | 100 | 30.48 |
| 4 | 10.16 | 4.45 | 11.3 | 100 | 30.48 |

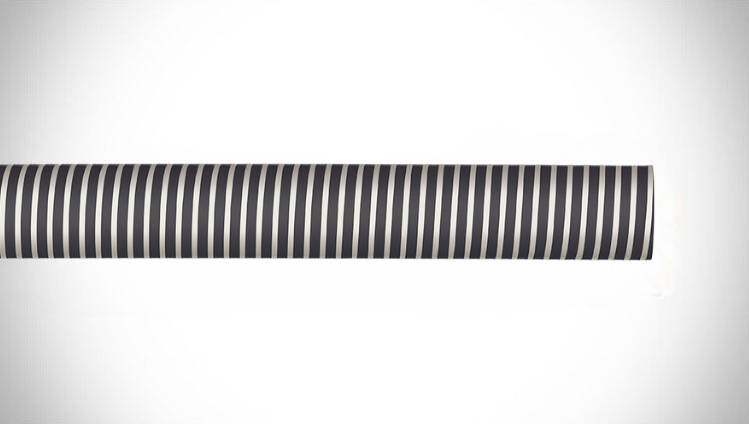

FlexFLO™ U 113 (113 UVCLBK)
UV resistant all weather suction and discharge hose
An agile solution for diverse agricultural needs. Lightweight and flexible, its blended polyurethane construction enhances abrasion and UV resistance. Ideal for air seeder, fertilizer sprayer, foam markers, irrigation, manure spreading, and fish suction applications.
Application
All weather water and suction hose with multiple agricultural applications including, air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Also useful in fish suction applications.
Features
Lightweight and flexible water and suction hose. Improved abrasion and UltraViolet resistance because of the blended polyurethane construction. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.
Construction
Flexible PVC blended with polyurethane, rigid PVC helix, smooth bore, smooth O.D.
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.25 | 3.3 | 100 | 30.48 |
| 1¼ | 3.17 | 1.47 | 4 | 100 | 30.48 |
| 1¾ | 4.44 | 1.77 | 4.49 | 100 | 30.48 |
| 1½ | 3.81 | 2 | 4.59 | 100 | 30.48 |
| 2 | 5.08 | 2.30 | 5.99 | 100 | 30.48 |
| 2½ | 6.35 | 2.84 | 7.44 | 100 | 30.48 |
| 3 | 7.62 | 3.35 | 8.89 | 100 | 30.48 |

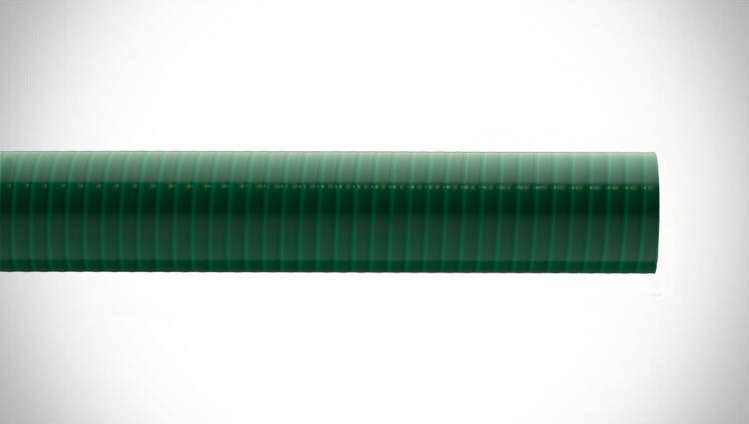

FlexFLO™ 114 (114 CL/114 GR)
Lightweight water suction and discharge hose
An ideal solution for various agricultural applications such as air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Lightweight, flexible, and featuring a clear sidewall for visual inspection, it ensures precise flow and optimal drainability.
Application
Economical water and suction hose with multiple agricultural applications including, air seeder, fertilizer sprayer, foam markers, irrigation, and manure spreading. Also useful in fish suction applications.
Construction
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1¼ | 3.17 | 1.44 | 3.65 | 100 | 30.48 |
| 1½ | 3.81 | 1.69 | 3.78 | 100 | 30.48 |
| 2 | 5.08 | 2.24 | 5.68 | 100 | 30.48 |
| 2½ | 6.35 | 2.80 | 7.11 | 100 | 30.48 |
| 3 | 7.62 | 3.31 | 8.4 | 100 | 30.48 |
| 4 | 10.16 | 4.39 | 11.1 | 100 | 30.48 |
FlexFLO™ 116 (116 Blue)
Cold weather water suction and discharge hose
An exceptional solution for demanding conditions. Designed to excel in cold weather, this hose ensures reliable water and suction performance with its durable construction.
Application
Cold weather suction and discharge hose that can be used in agricultural applications on fertilizer sprayers and as an irrigation hose. It can also be used for water pumping in most construction applications.
Features
A cold weather suction and discharge hose that will remain flexible in temperatures as cold as -40°F. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.
Construction
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.25 | 3.17 | 100 | 30.48 |
| 1¼ | 3.17 | 1.50 | 3.81 | 100 | 30.48 |
| 1½ | 3.81 | 1.78 | 4.52 | 100 | 30.48 |
| 2 | 5.08 | 2.33 | 5.91 | 100 | 30.48 |
| 2½ | 6.35 | 2.90 | 7.36 | 100 | 30.48 |
| 3 | 7.62 | 3.38 | 8.58 | 100 | 30.48 |
| 4 | 10.16 | 4.46 | 11.32 | 100 | 30.48 |
| 6 | 15.24 | 6.67 | 16.9 | 50, 100 | 15.24, 30.48 |
FlexFLO™ SPA (SPA WHITE)
Flexible PVC spa hose
A versatile solution for spa applications. Flexible, lightweight, and featuring a smooth bore for precise flow and efficient drainability. Compatible with PVC solvent weld fittings only.
Application
Water lines, air lines, pump lines.
Construction
Flexible PVC, rigid PVC helix, smooth bore, smooth O.D.
Accessories
For use with PVC solvent weld fittings only.
Temperature Range
-13°F to 158°F (-25°C to 70°C)
Note
Not a food-grade hose. For use with PVC solvent weld fittings only. Inside diameter is nominal.
Tolerance on outside diameter is + .020, – .005
See usage/storage suggestions and warranty information before use.
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| ½ | 1.27 | 0.840 | 2.13 | 50, 100 | 15.24, 30.48 |
| ¾ | 1.9 | 1.050 | 2.66 | 50, 100 | 15.24, 30.48 |
| 1 | 2.54 | 1.315 | 3.34 | 50, 100 | 15.24, 30.48 |
| 1¼ | 3.17 | 1.660 | 4.21 | 50, 100 | 15.24, 30.48 |
| 1½ | 3.8 | 1.900 | 4.82 | 50, 100 | 15.24, 30.48 |
| 2 | 5 | 2.375 | 6 | 50, 100 | 15.24, 30.48 |
FlexFLO™ lite 100 (100 Blue)
Cold weather water suction and discharge hose
Application
A versatile, lightweight solution for low temperature applications ranging from -40°F to 140°F. Constructed with cold weather PVC, a rigid PVC helix, smooth bore, and corrugated outer diameter, it offers increased flexibility and easy drag in sub-zero conditions. Ideal for general-duty water suction and discharge, with a clear sidewall for visual flow checks.
Features
Lightweight with increased flexibility even at sub-zero temperatures. Clear sidewall permits visual check of material flow. External helix provides for easy drag.
Construction
Cold weather PVC, rigid PVC helix, smooth bore, corrugated O.D.
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Accessories
Banding coil, Powerlock clamp
Available Sizes
| ID | OD | Standard Length | |||
|---|---|---|---|---|---|
| in. | cm | in. | cm | ft. | m |
| 1 | 2.54 | 1.25 | 3.17 | 100 | 30.48 |
| 1½ | 3.81 | 1.81 | 4.59 | 100 | 30.48 |
| 2 | 5.08 | 2.36 | 5.99 | 100 | 30.48 |
| 3 | 7.62 | 3.50 | 8.89 | 100 | 30.48 |
| 4 | 10.16 | 4.55 | 11.55 | 100 | 30.48 |
| 6 | 15.24 | 6.73 | 17.09 | 100 | 15.24, 30.48 |
| 8 | 20.32 | 9.04 | 22.96 | 100 | 15.24, 30.48 |
Catalogs
See below for the Kanaflex Industrial Hose catalog, also available at this link.
