Our ExtremeFlex™ Hose is an advanced formulation and construction that creates an incredibly durable and flexible hose at a great value.
ExtremeFlex™ is the standard in transfer hose and features technologically advanced rubber compounding that allows it to surpass the competition. Among its many advantages, it is:
- More Flexible:
Easier to move in and out of tight spaces and around corners - Lighter weight:
Easier to lift and carry, resulting in fewer workplace injuries - Lower Force to Bend:
Easier to connect and disconnect for increased productivity - Improved Flex Performance:
More durable and longer lasting
PROTECTION THAT LIVES ON
MICROBAN®
Protect your investment.
Underlying every beverage processing operation is the need to meet strict safety regulations, instill confidence and protect the integrity of your business. Only ContiTech makes hose with Microban® Antimicrobial Protection compounded into the cover, providing you a cleaner way to do business. Proven to guard against product degradation and contamination, Microban® technology prevents the growth of stain- and odor-causing bacteria, mold and mildew on the hose. Keep hose cleaner in between use with proactive protection that lasts for the life of the product.
MICROBAN® PROVEN TO PROTECT
This information is based upon standard laboratory tests and is provided for comparative purposes to substantiate antimicrobial activity for non-public health applications. Microban® technology is not designed to replace good hygiene practices or protect users from disease-causing microorganisms. Antimicrobial action is limited to product surface.
* Green indicates bacteria.
Beverage Hose at a Glance
Beverage
Being ahead in the beverage industry requires that transfer, bottling and disposal are done with performance and safety in mind. Remaining neutral to taste and odor while producing quality results that meet and exceed regulatory standards is the number one priority. Because being tough and flexible are the name of the game, ContiTech has created beverage hose that excels.
Drinkline™
Application
Drinkline™ is a quality discharge hose designed specifically for the highly demanding service of transferring non-oily liquid products in wineries and breweries.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chlorobutyl
> Cover
Red EPDM
> WP/BP
250 psi (17 bar)/1000 psi (68 bar)
Temperature Range
-40°F to 220°F (-40°C to 104°C)
Order Codes
549-380
*For full specifications, please see p.7 of the Food and Beverage Catalog
EZ Glide™ Wine
Application
EZ Glide Wine™ is a quality, nontoxic hose for handling wine, potable water and other non-oily liquid food products where the hose must meet FDA requirements. For discharge service and suction service up to 20″ hg
vacuum at ambient temperature.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chlorobutyl Rubber
> Cover
Gray Chemivic
> WP/BP
150 psi (10 bar)/600 psi (40 bar)
Temperature Range
-20°F to 180°F (-29°C to 82°C) [max 200°F (92°C) for cleaning purposes only]
Order Codes
549-646
*For full specifications, please see p.8 of the Food and Beverage Catalog
Purple Snake
Application
The improved quality of Purple Snake® is the ideal hose for breweries, winepresses, bottlers and many other installations in the brewing, beverage and spirits industry.
Flexibility, pressure resistance and long service life—even under extreme working conditions—are additional advantages that make this hose popular all over the world. The new, optimized lining conforms to foodstuffs regulations and is neutral to taste and odor. Tube is suitable for pure alcohol up to 98%. The hose is resistant to conventional cleaning agents and disinfectants. Purple Snake® can easily be cleaned conventionally or by CIP installations. This hose is manufactured to European standards.
Standards
XXI Cat. 2 of BfR, EG 1935/2004, EG 2023/2006
Construction
> Tube
White EPDM
> Cover
Red EPDM
> WP/BP
230 psi (16 bar)/700 psi (48 bar)
Temperature Range
-22°F to 194°F (30°C to 95°C) [steamed up to 266°F (130°C) max 30 minutes]
*For full specifications, please see p.7 of the Food and Beverage Catalog
Distillery 150
Application
Plicord® Distillery 150 is used to transfer high-proof alcohol and other liquids (e.g., whiskey, vodka) up to 100% per volume maximum alcohol concentrate.
Standards
FDA & USDA
Construction
> Tube
UHMWPE
> Cover
Gray EPDM
> WP/BP
150 psi (10 bar)/600 psi (40 bar)
Temperature Range
-40°F to 212°F (-40°C to 100°C)
Order Codes
549-683
*For full specifications, please see p.7 of the Food and Beverage Catalog
Extremeflex™ Beverage Gray
Application
ExtremeFlex™ Beverage Gray is primarily used at beer, wine, distillery and beverage (edible liquid) transfer processing facilities. It is ideal for applications requiring flexible
and tight bend connections.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chlorobutyl
> Cover
Corrugated Gray Chemivic
> WP/BP
250 psi (17 bar) [1″-2″], 200 psi (14 bar) [3″], 150 psi (10 bar)/1000 psi (68 bar) [1″-2″], 800 psi (56 bar) [3″], 600 psi (40 bar) [4″]
Temperature Range
-30°F to 220°F (-34°C to 104°C)
Order Codes
549-603
*For full specifications, please see p.8 of the Food and Beverage Catalog
Extremeflex™ Beverage Red with EZ Clean Cover
Application
ExtremeFlex™ Beverage Red with EZ Clean Cover is primarily used at beer, wine distillery and beverage (edible liquid) transfer processing facilities. It is ideal for applications requiring flexible and tight bend connections.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chlorobutyl
> Cover
Red Corrugated EZ Clean UHMWPE
> WP/BP
250 psi (17 bar) [1″-2″], 200 psi (14 bar) [3″], 150 psi (10 bar)/1000 psi (68 bar) [1″-2″], 800 psi (56 bar) [3″], 600 psi (40 bar) [4″]
Temperature Range
-30°F to 220°F (-34°C to 104°C)
Order Codes
549-605
*For full specifications, please see p.8 of the Food and Beverage Catalog
Vintner™ Reserve
Application
Vintner™ Reserve is primarily used for handling in-plant and tank truck transfer of wine, beer, potable water and other non-oily, liquid foodstuffs. The monofilament helix is rustproof and is a crush-resistant alternative to traditional softwall or steel wire reinforced hose.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chlorobutyl
> Cover
Gray EPDM
> WP/BP
250 psi (17 bar)/1000 psi (68 bar)
Temperature Range
-30°F to 220°F (-34°C to 104°C)
Order Codes
549-381
*For full specifications, please see p.8 of the Food and Beverage Catalog
Extremeflex™ Food Grade
Application
ExtremeFlex™ Food Grade is for both dry food transfer and liquid transfer. It is a high-tech, flexible corrugated hose with pretzel-like agility and proven performance. Best of all, it is available at a non-corrugated price, making it an excellent value. With ExtremeFlex™, there is even more to appreciate.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chemivic
> Cover
White or Gray Corrugated Chemivic
> WP/BP
150 psi (10 bar)/600 psi (40 bar)
Temperature Range
-25°F to 212°F (-32°C to 100°C)
Order Codes
549-161 (gray)
549-462 (white)
*For full specifications, please see p.9 of the Food and Beverage Catalog

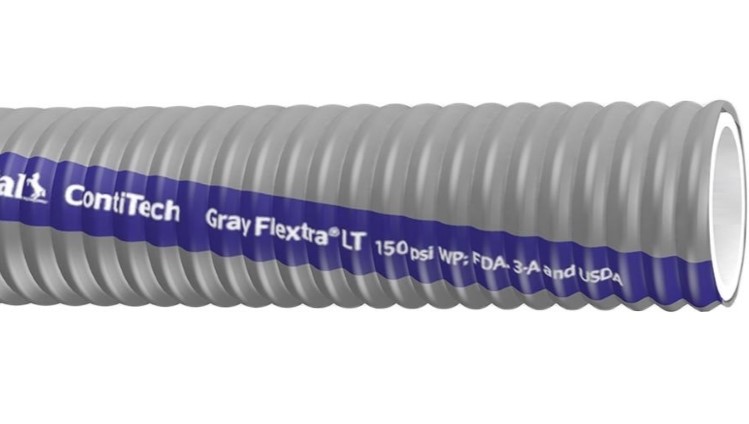

Flextra® LT (Rebrand to Extremeflex Food HD)
Rebranding to Extremeflex Food HD
Starting in September 2024, Flextra Food LT will be rebranded as Extremeflex Food HD. This change is part of our initiative to integrate it into the Extremeflex Series, reflecting its superior capabilities.
This will be a running change. As we deplete our existing Flextra Food LT stock, we will gradually transition to Extremeflex Food HD. Rest assured, the hose will retain all of its outstanding features and reliability. This is a great hose with a new, refreshed brand identity that better reflects its premium performance.
We’re fully stocked and ready to fulfill your Flextra Food LT orders as we make the transition.
Flextra Food LT has long been a reliable solution for many of our customers, known for its durability, lightweight construction, and flexibility in transferring dry food and liquids. To further enhance its market presence and align it with our premium product line, we are updating its image and name.

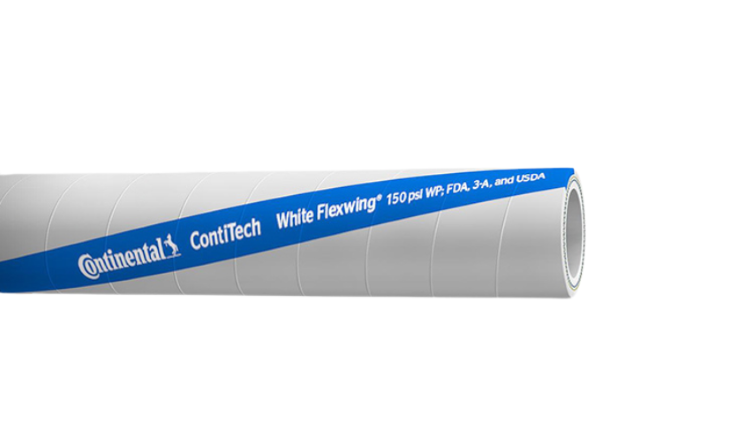

White Flexwing®
Application
Flexwing® is for both dry food transfer and liquid transfer. It is a highly flexible hose for gravity flow, pressure or suction service transferring oily and non-oily edibles from tank truck and in-plant service.
Standards
FDA, USDA & 3-A Sanitary Standard 18-03
Construction
> Tube
White Chemivic
> Cover
White Chemivic
> WP/BP
150 psi (10 bar)/600 psi (40 bar)
Temperature Range
-25°F to 230°F (-32°C to 110°C)
Order Codes
549-151
*For full specifications, please see p.9 of the Food and Beverage Catalog
Collector®
Application
Collector® is the ideal high-quality hose for reliable and safe use with milk collecting trucks. Its white lining, made from natural rubber, is neutral to taste and odor, resistant to raw milk as well as to commonly used cleaning products. It is reinforced with
just one steel wire helix to allow a pressure of 6 bar. The very high flexibility of the hose makes it easy to handle. The natural rubber
cover is resistant to abrasion, UV and ozone. It meets recommendation XXI of BfR and is FDA compliant. Collector® is manufactured
to European standards
Standards
FDA, XXI Cat. 2 of BfR, EG 1935/2004 & EG 2023/2006
Construction
> Tube
Black NBR
> Cover
Blue Natural Rubber
> WP/BP
87 psi (6 bar)/261 psi (18 bar)
Temperature Range
-40°F to 158°F (-40°C to 70°C) [steamed to 194°F (90°C) max 20 minutes]
*For full specifications, please see p.10 of the Food and Beverage Catalog

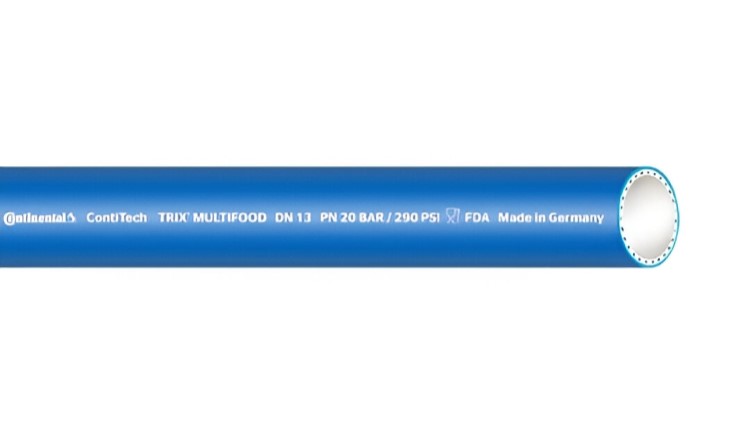

Trix® Multifood
Application
Trix® Multifood is the universal hose for the food industry. It can be used in dairy, cheese, production, margarine production, large-scale catering establishments, the fish processing industry as well as in breweries, slaughter-houses, oil mills, the skinning industry, large-scale butcher’s shops and jam production. It is suitable for conveying milk, whey and hot water up to 194°F (90°C).
Standards
FDA, EG 1935/2004 & EG 2023/2006
Construction
> Tube
White NBR
> Cover
White or Blue NBR
> WP/BP
290 psi (20 bar)/870 psi (60 bar)
Temperature Range
-4°F to 194°F (-20°C to 90°C)
*For full specifications, please see p.10 of the Food and Beverage Catalog
PVC Hose
Velocity™ Beverage Transfer Hose
Application
Velocity™ Beverage Transfer Hose uses USDA, FDA and NSF-61 approved materials. It is ideal for applications needing a lightweight, flexible PVC hose such as wineries and microbreweries.
Standards
FDA, USDA, NSF-61 & 3-A Sanitary Standard 20-27
Construction
> Tube
Clear Pliovic® Compound
> Cover
Clear Pliovic® Compound
> WP/BP
110 psi (8 bar) [1½”] 100 psi (7 bar) [2-3″] 75 psi (5 bar) [4″]/120 psi (8 bar [1½”] 300 psi (21 bar) [2-3″] 225 psi (16 bar) [4″]
Temperature Range
-13°F to 140°F (-25°C to 60°C)
Order Code
591-103
*For full specifications, please see p.11 of the Food and Beverage Catalog
Pliovic® FG (FDA-3A)
Application
Pliovic® FG is a versatile, lightweight, reinforced tubing for the food and beverage, general air, multipurpose, pharmaceutical and cosmetics industries. Pliovic® FG can also be used for computer component manufacturers, textile mills and air-actuated equipment.
Standards
FDA, USDA, NSF-61 & 3-A Sanitary Standard 20-27
Construction
> Tube
Clear Pliovic® Compound
> Cover
Clear Pliovic® Compound
> WP/BP
250 psi (17 bar) [1/2″-3/8″], 200 psi (14 bar), [1/2″-5/8″], 150 psi (10 bar) [3/4″], 125 psi (9 bar) [1″-1.1/2″]/1000 psi (68 bar) [1/2″-3/8″], 800 psi (56 bar) [1/2″-5/8″], 600 psi (40 bar) [3/4″], 500 psi (36 bar) [1″-1.1/2″]
Temperature Range
-10°F to 158°F (-23°C to 70°C)
Order Code
540-337
*For full specifications, please see p.11 of the Food and Beverage Catalog
Aquapal®
Application
The ideal hose whenever it comes to conveying potable water in the food and beverage industry. Can be used for camping, caravaning, filling potable water storage tanks, large-scale catering establishments, maintaining domestic emergency supplies, public festivals and many more applications. The special transparent, plastic inner lining, free of plasticizers, is homogeneous, smooth
and neutral to taste and odor. Aquapal® meets all the German recommendations and regulations for the transport of potable water.
Standards
DVGW W270, DVGW VP 549, WRAS, FDA, EG 1935/2004, EG 2023/2006 & EU 10/2011
Construction
> Tube
Special Material
> Cover
NBR
> WP/BP
290 psi (20 bar)/870 psi (60 bar)
Temperature Range
22°F to 194°F (-30°C to 90°C) [Steamed up to 266°F (130°C) max 30 minutes]
*For full specifications, please see p.11 of the Food and Beverage Catalog
Potable Water Hose
Deep Blue Potable Water
Application
Deep Blue Potable Water is used for the transfer of potable water, non-potable water or liquids not containing oils or chemicals
Standards
FDA, USDA
Construction
> Tube
Special NSF-61 Listed Material
> Cover
Blue SBR
> WP/BP
150 psi (10 bar)/600 psi/(40 bar)
Temperature Range
-40°F to 150°F (-40°C to 66°C)
Order Code
542-087
*For full specifications, please see p.11 of the Food and Beverage Catalog
Clearwater Potable Water
Application
Clearwater is a WRAS-approved hose suitable for handling drinking water for domestic purposes.
Standards
FDA, USDA & WRAS
Construction
> Tube
Special NSF-61 Listed Material
> Cover
Blue EPDM
> WP/BP
200 psi (14 bar)/800 psi (56 bar)
Temperature Range
-40°F to 212°F (-40°C to 100°C)
Order Code
549-583
*For full specifications, please see p.11 of the Food and Beverage Catalog
Washdown
ContiTech food washdown hose featuring Microban® Technology is the cleaner way to do business.
Poseidon
Application
Poseidon is a high-quality, economical hose for hot water cleanup up to 210°F (99°C). Use this in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries
Standards
ARPM Class A (High Oil Resistance)
Construction
> Tube
Black Nitrile
> Cover
White Chemivic
> WP/BP
300 psi (21 bar)/1200 psi (44 bar)
Temperature Range
-20°F to 210°F (-29°C to 99°C)
Order Code
569-019
*For full specifications, please see p.12 of the Food and Beverage Catalog
Blue Fortress® 300 with Microban®
Application
A high-quality construction hose for hot water cleanup up to 200°F (93°C). Use this hose in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries. Its super abrasion and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats. The cover of the blue Fortress® 300 hose incorporates Microban® antimicrobial built-in protection.
Standards
FDA tube, ARPM Class A (High Oil Resistance)
Construction
> Tube
White Nitrile
> Cover
Carbryn™ with Microban®
> WP/BP
300 psi (21 bar)/1200 psi (44 bar)
Temperature Range
-20°F to 210°F (-29°C to 99°C)
Order Code
569-121
*For full specifications, please see p.12 of the Food and Beverage Catalog
Fortress® 3000 with Microban® Technology
Application
Fortress® 3000 is for use on pressure washing machines with working pressure up to 3000 psi. Applications include washdown service in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries. Its super abrasion- and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats. The cover of the Fortress® 3000 hose incorporates Microban®
antimicrobial built-in product protection.
Standards
ARPM Class A (High Oil Resistance)
Construction
> Tube
Black Nitrile
> Cover
Carbryn™ with Microban®
> WP/BP
3000 psi (207 bar)/12000 psi (820 bar)
Temperature Range
-20°F to 250°F (-29°C to 121°C)
Order Code
569-120
*For full specifications, please see p.12 of the Food and Beverage Catalog

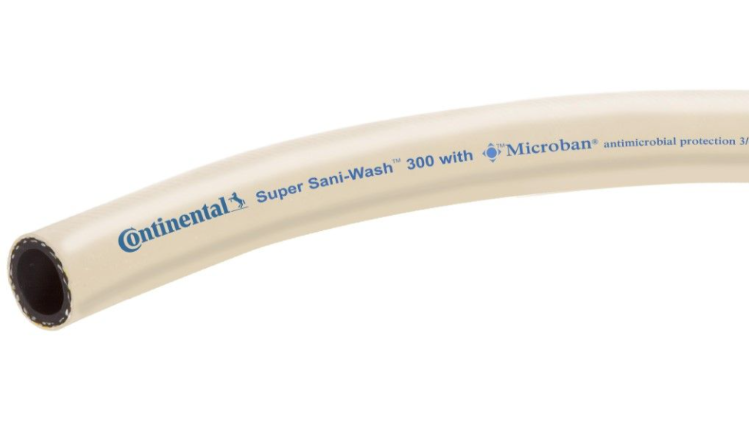

Super Sani-Wash™ 300
Application
Super Sani-Wash™ is an economical hose for hot water washdown and cleanup up to 200°F (93°C). Use this hose in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries. The cover of the Super Sani-Wash™ 300 washdown hose incorporates Microban® antimicrobial built-in product protection.
Standards
N/A
Construction
> Tube
EPDM
> Cover
White EPDM
> WP/BP
300 psi (21 bar)/1200 psi (44 bar)
Temperature Range
-20°F to 210°F (-29°C to 99°C)
Order Code
569-021
*For full specifications, please see p.12 of the Food and Beverage Catalog
Accessories
Because the occasion is everyday performance in the face of changing and demanding challenges, Continental accessories execute the essential details.
DINGA Water-Saving Gun
Application
The DINGA Water-Saving Gun is extremely robust and has a long service life due to its high-quality brass/stainless steel design. Additionally, it is protected against shock, heat and cold. It also has rubber protection
against any damage from caustic solutions and acids. The use of this gun helps to save considerable water and energy costs, which along with its chemical-free cleaning capability, contributes to the protection of the environment. The flow can be adjusted from a fine spray to a concentrated jet. Thus, the gun is suitable for a careful and efficient cleaning of nearly any professional application. Working pressures up to 363 psi (25 bar)*, with adjustable water spray, resistant to caustic solution and acids, flow rate of water 25 liters or 6.6 gallons per minute at 5 bar/72 psi.
*Hose assemblies are rated to the lowest maximum working pressure of individual hose, fittings and nozzle components.
Standards
N/A
Construction
> Tube
N/A
> Cover
N/A
> WP/BP
363 psi (25 bar)
Temperature Range
-122°F (50°C) max temperature rating
*For full specifications, please see p.13 of the Food and Beverage Catalog
Protection Ring
Application
Rubber protection rings are ideal for food processing applications to lift fittings off the floor and protecting the fitting from scratches caused by dropping. The ID of the protection ring is the same as the size of the OD or a bit smaller to fit tight to the hose to avoid sliding off.
Note: When ordering, please specify the size of the hose and the correct protection ring will be shipped to you.
Temperature Range
-4°F to 176°F (-20°C to 80°C)
*For full specifications, please see p.13 of the Food and Beverage Catalog
Crimp Fittings
To meet the more stringent hygiene and safety requirements of the brewing, beverage and food industries, ContiTech offers the required fitting system to all demanding applications in the food industry. The fittings are made from the material SS316 and are available in all common nominal hose widths. These fitting systems are the ideal connection for all beer, beverage and food hose from ContiTech—whether they contain a steel/monofilament wire helix or not. Suitable rubber protection rings provide additional protection for your hose assemblies. The protection rings will elevate the fittings and prevent them from touching the floor. These rings are available in blue with different size options.
Features
- Smooth and hygienically-clean connection, without any transition between hose lining and coupling
- Hose end sealed tightly (no wicking action)
- Very high-pressure stability and resistant to pull-off forces
Catalogs
See below for the Continental Industrial Hose catalog, also available at this link.
